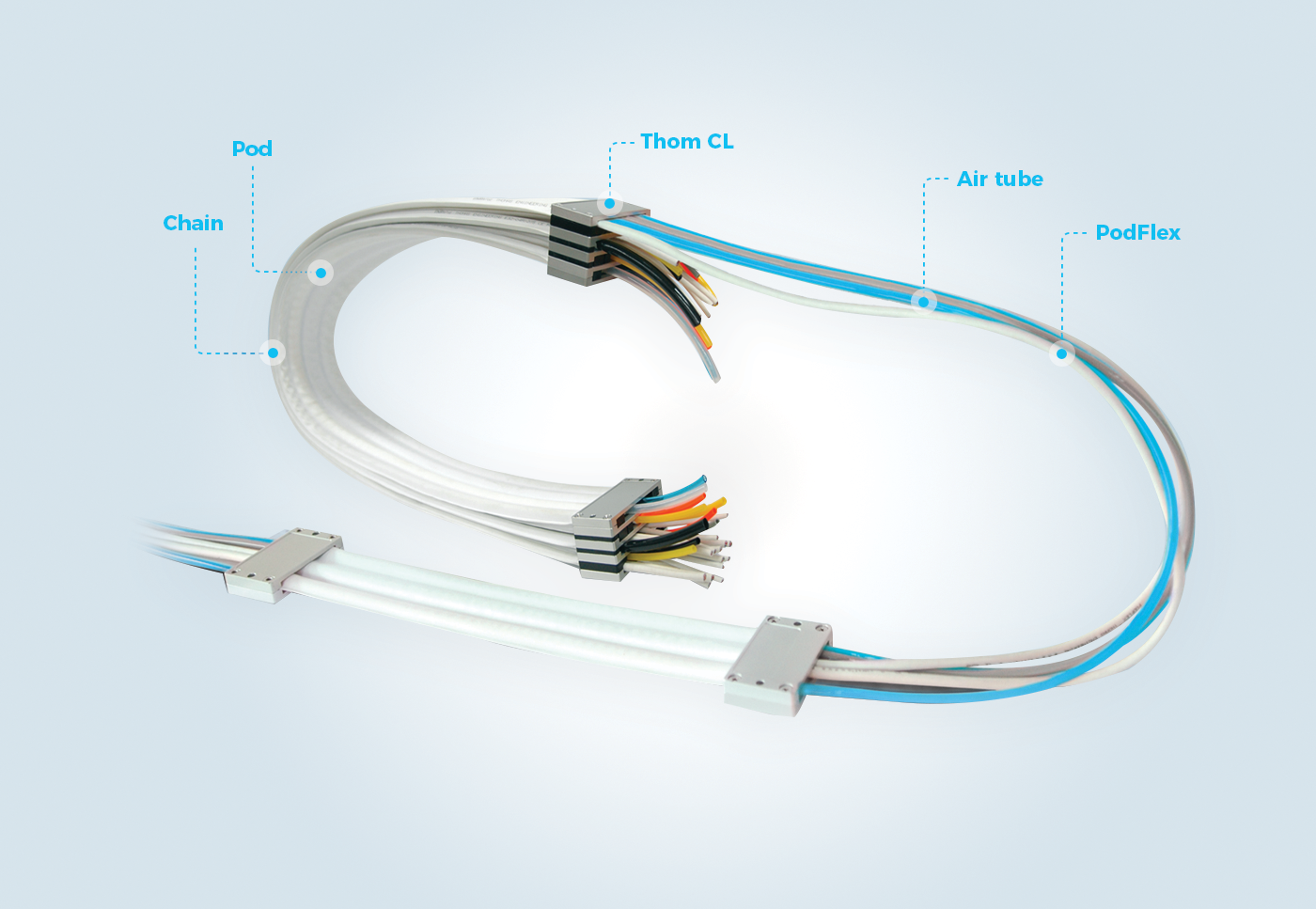

Clean Cable Moving System
It is a cable moving system optimized for the clean room environment
and a system combining Thomas’s automation cable manufacturing technology and the German company Murrplastik’s chain.
| Applications | Benefits |
|---|---|
| Semiconductor equipment | Selection of specifications customized for the customer’s needs |
| Solar panel | Professional engineer team |
| Test equipment | The company’s proprietary production technology |
| Medical devices and equipment | Strict quality inspection |
| Camera inspection equipment | Continuous test and development |
| Laser cutting equipment | Quality maintenance of a high standard |
| Display equipment | IPA Class 1(particle-free) |
| Features | Descriptions |
|---|---|
| Life | 10 million cycles and more |
| Speed of traverl | 2 m/s |
| Acceleration | 3G~4G |
| Bending radius | 40mm, 70mm, 100mm |
| Standard components | 1Pod, 2Pod, 3 Pod, 4 Pod, 5 Pod, 6 Pod |
| Inner width | 20.5mm |
| Cable specification | Ultra fine wire, FEP insulation and jacket for Spiral Shield Cleanroom |
| Temperature range | -10 ~ +80℃ |
| Certification | CE, IPA |
| Cleanroom qualification | IPA Class 1 |
| Self-supporting | 3m |
It is subject to change depending on the composition of cable, bending radius, travel speed, and distance.
The moving system that solves the dust problem using the Cleanroom technology maximizes cable’s life span.
| S | S2 | R | CL-W | H2 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| Stroke | Stroke | (Bending) Radius | Clamp width | Max, Height | Cable Length fixed Part | Cable Length inside Pod | Cable Length moving part |
| Travel distance | Travel distance | Bending radius | Bracket width | Maximum installation height | Length of the fixed bracket cable | Length of the cable inside pod | Length of the movable bracket cable |
