Flat Pot Cable
ThomPod-Flat Cable Composition Specifications

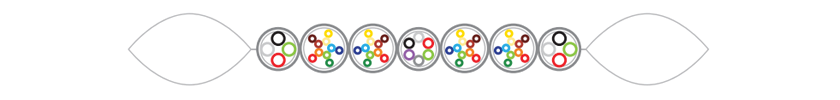

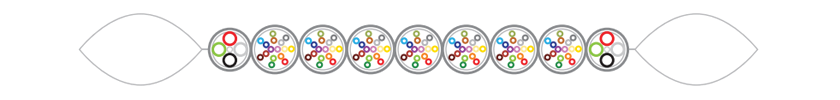

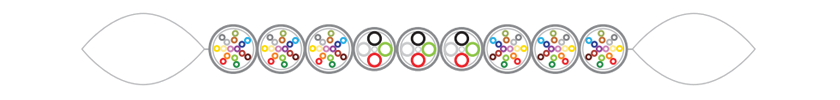

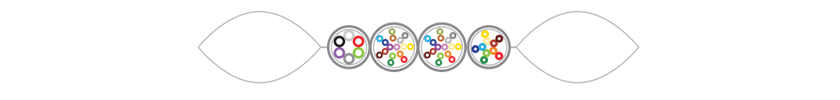

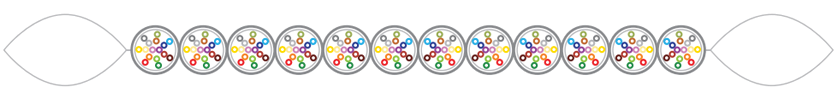

| Part. No | Sectional view | Description |
|---|---|---|
| W1001 |
 |
2Pod+2(4X0.5)D + 2(5X2X0.14)D |
| W1002 | 4X(8X2X0.14)D | |
| W1003 |
 |
2Pod+2(4X0.75)D + 1(6X0.5)D + 4(5X2X0.14)D |
| W1004 | 7X(8X2X0.14)D | |
| W1005 |
 |
2Pod+3(4X1.5)D + 6(8X2X0.14)D |
| W1006 | 9X(8X2X0.14)D | |
| W1007 |
 |
12X(8X2X0.14)D |
| W1008 |
 |
2 POD(20.5mm) + 2(8*2*0.14) + 1(6*0.5) + 1(5*2*0.14) |
| W1009 |
 |
2 POD(20.5mm) + 4(8*2*0.14) +2(4*0.75) + 1(6*0.5) |
| W1010 |
 |
2 POD(20.5mm) + 7(8*2*0.14) +2(4*1.5) |
ThomPod-Flat – Customized
We can manufacture a customized ThomFlat that can overcome the problems of ThomPod such as limited space for the installation of equipment and insertion of a large number of cables with restrictions.
It is a service that we can provide based on the expertise that stems from the combination of the cable manufacturing technique and pod attachment technology.
Complete customer-tailored design
Possible to install in a limited space for the installation
Benefit
Internal dust minimization system
Possible to insert a pneumatic tube or supporting chain
High
Flexible
Functionality
We combined ThomPod’s cable fluidity and ThomFlat’s space intensity.
You can add cable, airtube and chain by adding pods to ThomFlat.
It is possible to apply a large number of cables in a compact space, enabling a long-distance operation as well.
| Technical Data | |
|---|---|
| Rating voltage | 0.14mm²~0.34mm² : Max.250V |
| 0.5mm² ~1.5mm² : 300/500 V (Uo/U) | |
| 2.5mm²~ : 450/750V(Uo/U) | |
| Temperature | -20℃ to+80℃ |
| Test Voltage | 0.14mm²~0.34mm² : 1500V (Core/Core) |
| 0.5mm² ~1.5mm² : 2000V (Core/Core) | |
| 2.5mm²~ : 2500V | |
| Bending Radius | 1500V/1200V (C/C, C/S 0.14mm²) |
| 7.5 x D (D:External diameter of the cable) | |
