Single Mode
CS and ECS
CS-ES and ECS-ES
CSV and ECSV
Applied at a high temperature ― steel industry, defense-related industries, power plants, and other various industries

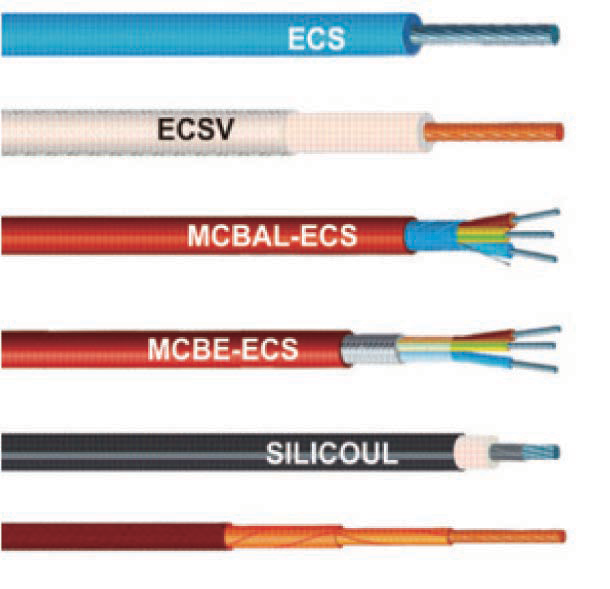

CS and ECS
CS-ES and ECS-ES
CSV and ECSV
MC-ECS
MCBE-ECS
MCBAL-ECS
1.1㎸
3.7㎸
6.6㎸
13.8㎸
Number of strands :
1~37℃
Cross-sectional area of conductor:
0.25~400SQ
Number:
Color identification method
peak temperature:
+230℃
Tinned or nickel plated copper, halogen-free
SILICOUL:
BV/Lloyd’s approval
It is used in high temperature areas such as steel mills, glass factories, oil burners and impression and compression factories.
ETFE and EETFE
FEP and EFEP
PFA and EPFA
Multi Mode
M6-E6
M6BE-E6
KVS and 2KVS
Number of strands:
1~7℃
Cross-sectional area of conductor:
0.05~240SQ
Number:
Color identification method
peak temperature:
+450℃
Tinned plated copper and red copper
Kapton:
Radiation resistant material
(-100℃~+350℃peak: +450℃)
Thin sheath, excellent durability, high resistance against physical stress, chemical resistance, and used at high/low temperatures
Applied to electric furnaces, kitchen equipment, chemical plants, nuclear power plants, diesel engine tests, steam boilers and in the aviation industry.

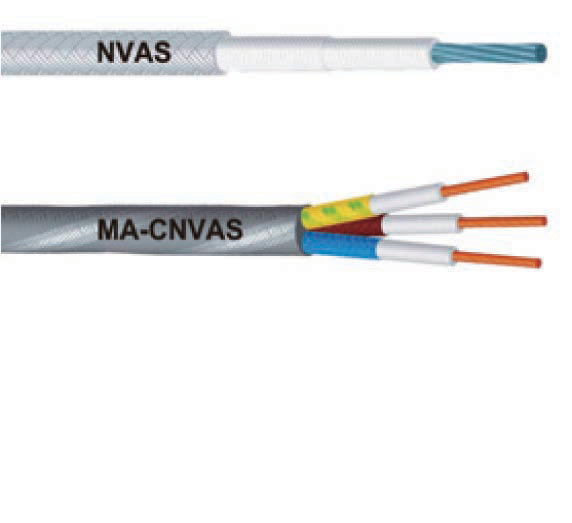

CNVAS
NVAS
MV-VS
MA-CNVS
MA-CNVAS
MA-NVAS
Number of strands :
1~7 CORE
Cross-sectional area of conductor:
0.25~240㎟SQ
Color identification method
peak temperature :
+550℃
nickel plated copper and nickel conductor
silicon-coated fibreglass lapping/braid in silicon-coated mineral fibre
Applied to high temperature areas such as electric furnaces in steel mills, glass factories, nuclear power plants, electric heating appliances, and heaters.
Steel mills :
Direct and indirect heat transfer such as burners and torch cutters.
Used in areas above 300℃

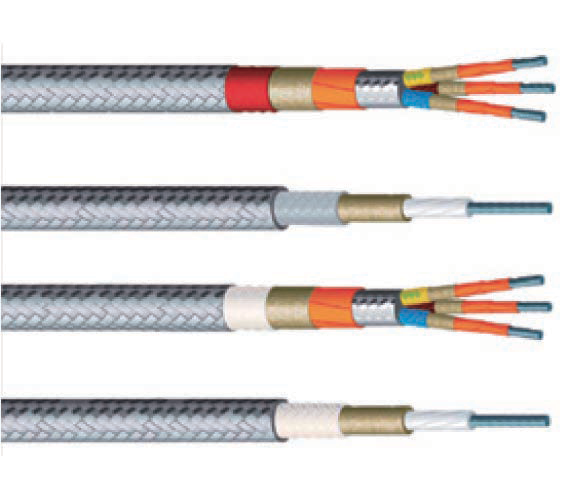

THS 1000series(+500℃~800℃)
THS 1200series(+600℃~800℃)
THS 1400series(+800℃~1200℃)
THS 1500series(+1000℃~1400℃)
Number of strands :
1~7 CORE
Cross-sectional area of conductor:
0.22~10㎟SQ
Color identification method
nickel plated copper and nickel 200 conductor(ATSM B160)
stainless steel(AISI 304) outer shieleing)
It satisfies the fire resistance and waterproofing conditions in special high-temperature areas such as electric furnaces and heating furnaces.(kapton polymide)
