Respond to an earthquake in all direction through the ball bearing and plate
Maximum vibration displacement
Safety is secured by adopting a dual bearing method
Maintain the maximum loading weight over 2,000 kg

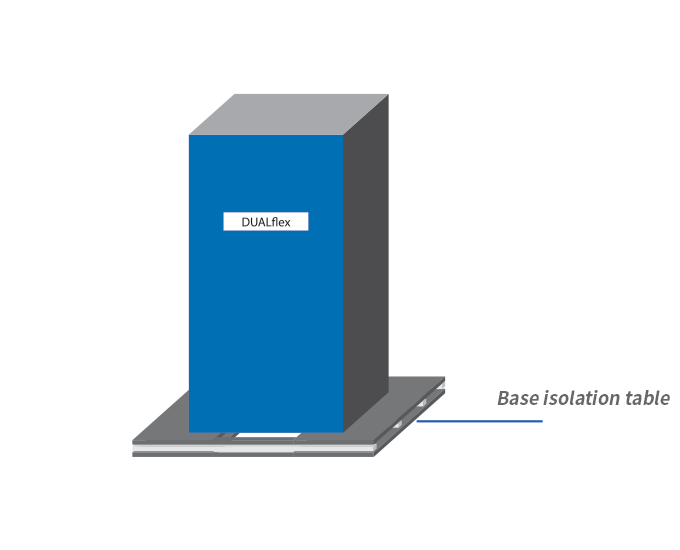

Composition of DUAL Flex

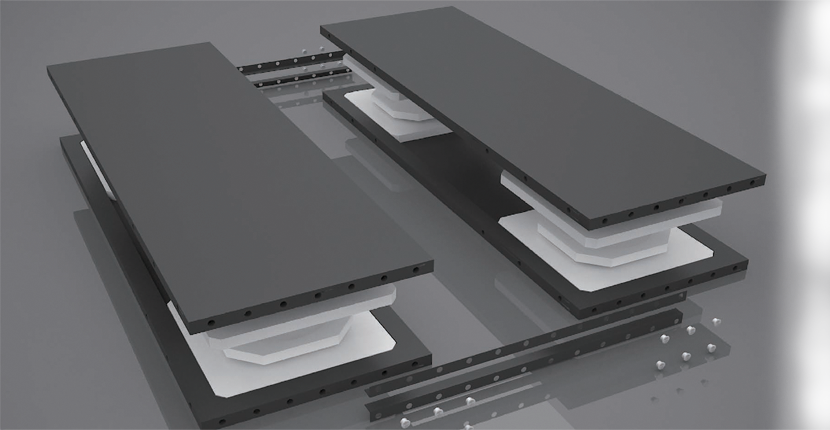

Composition of DUAL Flex
Five operation principles of the base isolation device
| Damping force | The force that acts as a brake absorbing earthquake or vibration |
|---|---|
| Dynamic stability | The force that tends to return back to its original state after an earthquake to prepare for additional vibration or an aftershock. |
| Load force | The mounting capability that can withstand a weight (the mass of the object) |
| Natural period | Designed so that the natural period of the device does not resonate together with the ground motion. |
| Amplitude | The width at which the device swings (distance and stroke) |
Easy construction and continuous installation that is convenient
Easy construction
There is no need for additional fixing construction work on the ground; only placing it in position has a base isolation effect.
Convenient expansion
Since it is connected to a convenient multi-base isolation table, relocation and facility expansion can be done very easily.
