Applications | Benefits |
---|---|
半导体设备 | 选择客户定制化规格 |
太阳能板 | 专业工程师团队 |
测试设备 | 拥有本公司专利的生产技术 |
医疗器械及设备 | 严格的质量检验 |
相机检验设备 | 持续的Test和开发 |
激光切割设备 | 优秀维修 |
显示设备 | IPA Class 1(particle-free) |
特征 Features | 说明 Descriptions |
---|---|
寿命(Life) | 超过1000万Cycle |
速度(Speed of traverl) | 2 m/s |
加速度( Acceleration) | 3G~4G |
弯曲半径( Bending radius) | 40mm, 70mm, 100mm |
标准结构(Standard components) | 1Pod, 2Pod, 3 Pod, 4 Pod, 5 Pod, 6 Pod |
耐爆(Inner width) | 20.5mm |
cable规格(Cable specification) | Ultra fine wire、FEP 绝缘、Spiral ShieldCleanroom用Jacket |
温度范围(Temperature range) | -10 ~ +80℃ |
认证事项(Certification) | CE, IPA |
洁净室认证(Cleanroom qualification) | IPA Class 1 |
承载能力(Self-supporting) | 3m |
根据电缆构成、弯曲半径、移动速度、距离,可能会有所不同。

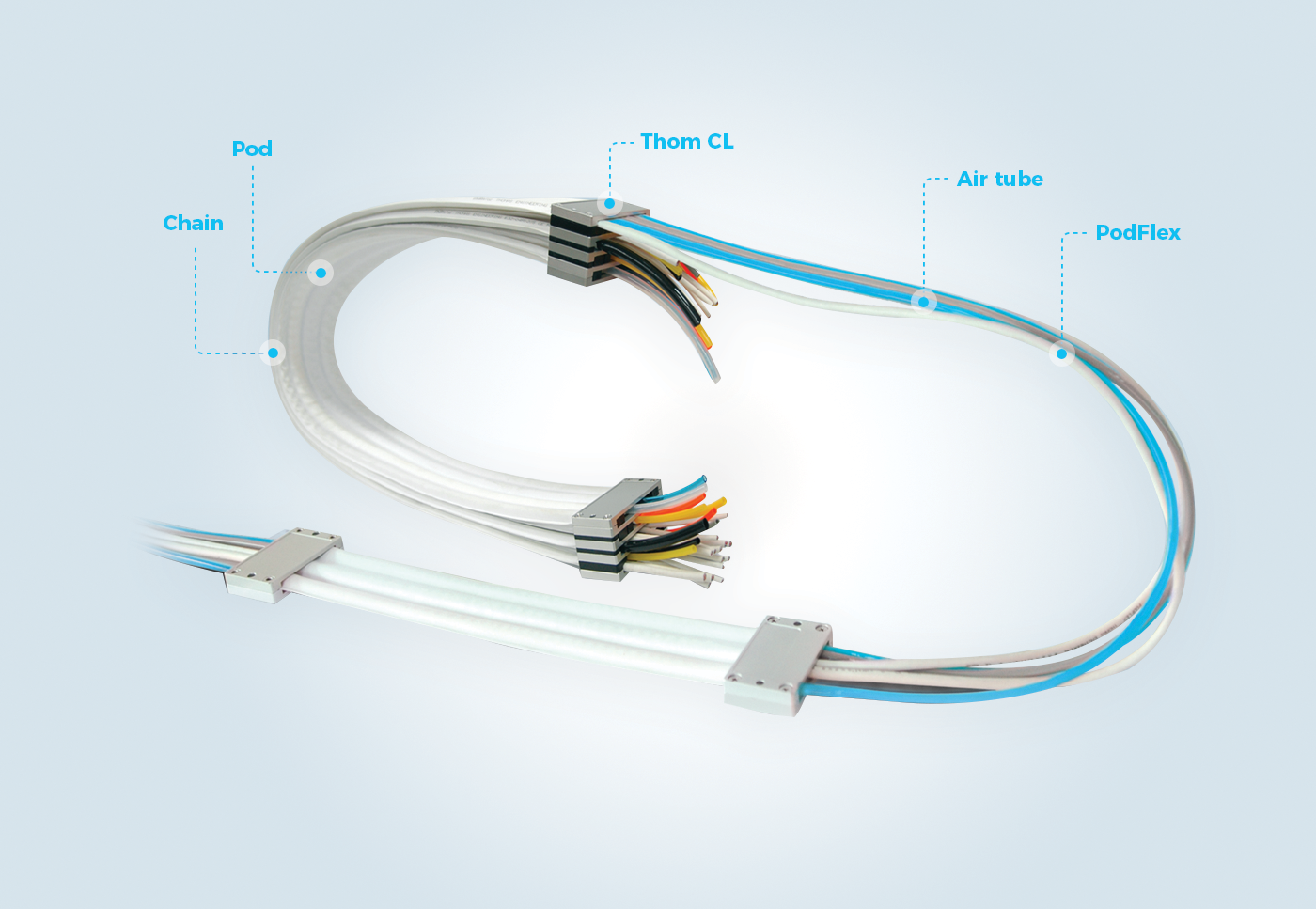

这是采用洁净技术解决粉尘问题的移动系统,最大程度延长电缆的使用寿命。
S | S2 | R | CL-W | H2 | L1 | L2 | L3 |
---|---|---|---|---|---|---|---|
Stroke | Stroke | (Bending) Radius | Clamp width | Max, Height | Cable Length fixed Part | Cable Length inside Pod | Cable Length moving part |
移动距离 | 移动距离 | 曲律半径 | 支架宽度 | 最大安装高度 | 固定支架电缆长度 | 吊舱内的电缆长度 | 活动式支架电缆长度 |
